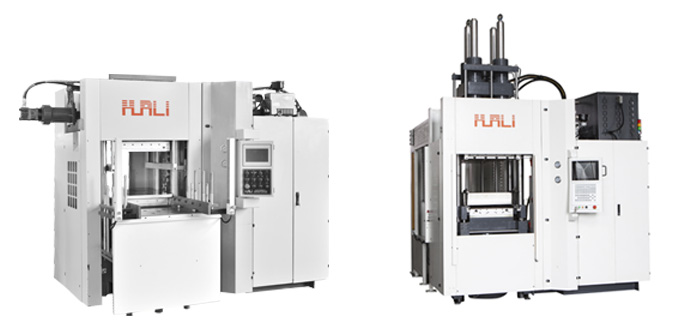

VERTICAL TYPE RUBBER INJECTION MOLDING MACHINE

Machine feature overview

1. Steady and fast design

2. 4 guide pillar machine

3. Thicker ﬁxed platen

4. Increase the plunger diameter

5. Machinery running smoothly and fast

Optimized the heating platen size and injection volume

合模单元/Modular element
		HL-160T
锁模力/Mode-locking force	KN	1600
开模力/Open die force	KN	58
开模行程/Opening stroke	KN	500
热板最大间距/Maximum hot plate spacing	MM	500
热板尺寸/Hot plate size	MM	500x530
顶出行程（力）/Ejection stroke (force)	MM(SCE/KN)	250(62.8)
合模速度/Closing veiocity	MM(SCE)	470
开模速度/die sinking velocity	MM(SCE)	470
注射单元/Injection unit
最大注射容积/Maximum injection volume	CM3	1250
最大注射压力/Maximum injection pressure	BAR	2000
最大注射能力/Maximum injection capacity	CM3/SEC	80-140
螺杆直径/Screw diameter	MM	35
螺杆长径比/Screw length diameter ratio	L:D	10:01
螺杆最大转速/Maximum screw speed	RPM	540
硫化能力/Vulcanization capacity	CM3/SEC	80-105
加热分区数量/Heating partition number		3x2
液压单元/Hydraulic unit
系统压力/System pressure	BAR	160-180
油泵最大流量/Maximum flow rate of oil pump	I/MIN	32-64(servo control )
邮箱容量/Tank volume	I	270
电器设备/Electrical equipment
电源供应/Power supply	KW	46
马达功率/Motor power	KW	14
电热功率/Electrothermal power	KW	15.6
控制器电压/Controller voltage	V	24

合模单元/Modular element
		HL-250T
锁模力/Mode-locking force	KN	2500
开模力/Open die force	KN	58
开模行程/Opening stroke	KN	500
热板最大间距/Maximum hot plate spacing	MM	600
热板尺寸/Hot plate size	MM	600x640
顶出行程（力）/Ejection stroke (force)	MM(SCE/KN)	250(62.8)
合模速度/Closing veiocity	MM(SCE)	470
开模速度/die sinking velocity	MM(SCE)	470
注射单元/Injection unit
最大注射容积/Maximum injection volume	CM3	2750
最大注射压力/Maximum injection pressure	BAR	2600
最大注射能力/Maximum injection capacity	CM3/SEC	80-140
螺杆直径/Screw diameter	MM	45
螺杆长径比/Screw length diameter ratio	L:D	10:01
螺杆最大转速/Maximum screw speed	RPM	140/2800
硫化能力/Vulcanization capacity	CM3/SEC	80-105
加热分区数量/Heating partition number		3
液压单元/Hydraulic unit
系统压力/System pressure	BAR	250-270
油泵最大流量/Maximum flow rate of oil pump	I/MIN	32-64(servo control )
邮箱容量/Tank volume	I	340
电器设备/Electrical equipment
电源供应/Power supply	KW	46
马达功率/Motor power	KW	14
电热功率/Electrothermal power	KW	15.6
控制器电压/Controller voltage	V	24

合模单元/Modular element
		HL-400T
锁模力/Mode-locking force	KN	4000
开模力/Open die force	KN	93
开模行程/Opening stroke	KN	600
热板最大间距/Maximum hot plate spacing	MM	750
热板尺寸/Hot plate size	MM	810x900
顶出行程（力）/Ejection stroke (force)	MM(SCE/KN)	300(98)
注射单元/Injection unit
最大注射容积/Maximum injection volume	CM3	3000
最大注射压力/Maximum injection pressure	BAR	2310
最大注射能力/Maximum injection capacity	CM3/SEC	120-160
螺杆直径/Screw diameter	MM	52
螺杆长径比/Screw length diameter ratio	L:D	10:01
硫化能力/Vulcanization capacity	CM3/SEC	200-250
液压单元/Hydraulic unit
系统压力/System pressure	BAR	250-280
油泵最大流量/Maximum flow rate of oil pump	I/MIN	71(servo control )
电器设备/Electrical equipment
马达功率/Motor power	KW	22
电热功率/Electrothermal power	KW	25.6
控制器电压/Controller voltage	V	24
