Plastic Injection Mahcine

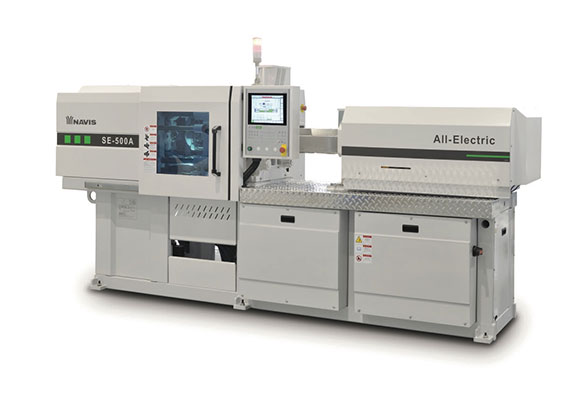

—— Smanl All-electric Injection Molding Machine

Function introduction:

1.According mechanical design principle,the five point toggle system is moving fast,stable and reliable;its position repeatability precision is within 0.05mm.

2.After finite element analysis,the clamping system has high rigidit and strength and guarantees the accuracy of platen parallel excellently.
All kind of curves display and inspection,modern production management and technology control

3.Top responsibility servo motor and bail screw is key element,origin Japan technology to keep advantage leading in the world.

4.Conpact and robust machine bed is high precision and minimum wear and tear on the mold and a long service time.

5.Ether CAT bus can integrated the controller,servo motor,intverter to share data in real-time and control with closed loop.

6.Professional controller for all electric injection molding machine has friendship human-computer interface, rapid and accuracy process control,easy operate,powerful function.

SE-500A
SE-1000A
SE-1500A
SE-1800A
SE-2300A
SE-2800A

Model	SE-500A
Injection model	130
		A	B	C
Screw diameter	mm	22	25	28
Screw L/D ratio		24.8	21.8	19.5
Injection capacity	cm3	41	51.5	65
Injection weight (PS)	g	37.3	46.9	59.2
Injection stroke	mm	105
Plasticizing capacity(PS)	kg/h	18	25	35
Scerw speed	rpm	350
Heater band		3+1
Heater power	kw	5.23
Nozzle pressing force	Kn	15.7
STANDARD		130
Injection speed	mm/s	200
Injection rate(PS)	cm3/s	78	98	124
Injection pressure	mpa	317	245	196
	mpa	317	245	196
	kgf/cm2	3235	2500	2000
Max.injection hold pressure	mpa	280	224	172
	mpa	280	224	172
	kgf/cm2	2857	2286	1755
OPTION		130H
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	117	147	186
Injection pressure	mpa	317	245	196
Injection pressure	kgf/cm2	3235	2500	2000
Max.injection hold pressure	mpa	280	224	172
Max.injection hold pressure	kgf/cm2	2857	2286	1755
Clamp tonnage	kn	500
Space between tie-bars	mm	310*310
Platen dimension	mm	450*450
Open stroke	mm	250
Min mould thickness	mm	150
Max mould thickness	mm	300
Ejector stroke	mm	60
Ejector force	mm	19.6
Ejector number		5
Motor power	kw	10.5
Total electric capacity	kva	15.4
Machine dimension	m	3.821.12.02
Mahcine weight	T	2.6

Model	SE-1000A
Injection model	240
		A	B	C
Screw diameter	mm	30	34	36
Screw L/D ratio		22.16	19.56	18.47
Injection capacity	cm3	92	118	132
Injection weight (PS)	g	83.7	107.4	120.1
Injection stroke	mm	130
Plasticizing capacity(PS)	kg/h	42	61	71
Scerw speed	rpm	350
Heater band		3+1
Heater power	kw	8.05
Nozzle pressing force	Kn	19.2
STANDARD		240
Injection speed	mm/s	200
Injection rate(PS)	cm3/s	142	182	203
Injection pressure	mpa	245	196	174
	mpa	245	196	174
	kgf/cm2	2500	2000	1780
Max.injection hold pressure	mpa	196	157	140
Max.injection hold pressure	kgf/cm2	2000	1602	1429
OPTION		240H
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	213	273	304.5
Injection pressure	mpa	245	196	174
Injection pressure	kgf/cm2	2500	2000	1780
Max.injection hold pressure	mpa	196	157	140
Max.injection hold pressure	kgf/cm2	2000	1602	1429
Clamp tonnage	kn	1000
Space between tie-bars	mm	410*410
Platen dimension	mm	590*585
Open stroke	mm	350
Min mould thickness	mm	180
Max mould thickness	mm	420
Ejector stroke	mm	85
Ejector force	mm	29.4
Ejector number		5
Motor power	kw	20.4
Total electric capacity	kva	27.8
Machine dimension	m	4.61.22.03
Mahcine weight	T	4.1

Model	SE-1500A
Injection model	450
		A	B	C
Screw diameter	mm	36	40	45
Screw L/D ratio		22.22	20	17.78
Injection capacity	cm3	173	214	270
Injection weight (PS)	g	157.5	194.4	246
Injection stroke	mm	170
Plasticizing capacity(PS)	kg/h	71	91	123
Scerw speed	rpm	350
Heater band		3+1
Heater power	kw	10.5
Nozzle pressing force	Kn	19.2
STANDARD		450
Injection speed	mm/s	200
Injection rate(PS)	cm3/s	204	251	318
Injection pressure	mpa	258	210	165
	mpa	258	210	165
	kgf/cm2	2636	2135	1687
Max.injection hold pressure	mpa	207	167	132
	mpa	207	167	132
	kgf/cm2	2109	1708	1345
OPTION		450H
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	306	376.5	477
Injection pressure	mpa	258	210	165
Injection pressure	kgf/cm2	2636	2135	1687
Max.injection hold pressure	mpa	207	167	132
Max.injection hold pressure	kgf/cm2	2109	1708	1345
Clamp tonnage	kn	1500
Space between tie-bars	mm	530*480
Platen dimension	mm	880*710
Open stroke	mm	420
Min mould thickness	mm	200
Max mould thickness	mm	550
Ejector stroke	mm	100
Ejector force	mm	29.4
Ejector number		5
Motor power	kw	30
Total electric capacity	kva	39.5
Machine dimension	m	5.91.392
Mahcine weight	T	5.6

Model	SE-1800A
Injection model	570
		A	B	C
Screw diameter	mm	40	45	50
Screw L/D ratio		22.5	20	18
Injection capacity	cm3	214	270	334
Injection weight (PS)	g	194.7	246	303.9
Injection stroke	mm	170
Plasticizing capacity(PS)	kg/h	91	123	150
Scerw speed	rpm	350
Heater band		3+1
Heater power	kw	11.5
Nozzle pressing force	Kn	29.4
STANDARD
Injection speed	mm/s	200
Injection rate(PS)	cm3/s	252	318	393
Injection pressure	mpa	265	210	170
Injection pressure	kgf/cm2	2700	2135	1730
Max.injection hold pressure	mpa	247	195	158
Max.injection hold pressure	kgf/cm2	2160	1708	1384
OPTION		570H
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	378	477	589.5
Injection pressure	mpa	265	210	170
Injection pressure	kgf/cm2	2700	2135	1730
Max.injection hold pressure	mpa	247	195	158
Max.injection hold pressure	kgf/cm2	2520	1990	1612
Clamp tonnage	kn	1900
Space between tie-bars	mm	560*560
Platen dimension	mm	810*750
Open stroke	mm	470
Min mould thickness	mm	200
Max mould thickness	mm	520
Ejector stroke	mm	110
Ejector force	mm	39.2
Ejector number		9
Motor power	kw	30
Total electric capacity	kva	41.5
Machine dimension	m	5.91.51.95
Mahcine weight	T	7.3

Model	SE-2300A
Injection model	790
		A	B	C
Screw diameter	mm	45	50	55
Screw L/D ratio		22.33	20	18.09
Injection capacity	cm3	334	412	499
Injection weight (PS)	g	303.9	375.2	454
Injection stroke	mm	210
Plasticizing capacity(PS)	kg/h	123	150	175
Scerw speed	rpm	350
Heater band		4+1
Heater power	kw	14.5
Nozzle pressing force	Kn	29.4
STANDARD
Injection speed	mm/s	200
Injection rate(PS)	cm3/s	318	393	475
Injection pressure	mpa	247	200	165
Injection pressure	kgf/cm2	2519	2040	1686
Max.injection hold pressure	mpa	197	160	132
Max.injection hold pressure	kgf/cm2	2015	1632	1349
OPTION
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	477	589.5	712.5
Injection pressure	mpa	247	200	165
Injection pressure	kgf/cm2	2519	2040	1686
Max.injection hold pressure	mpa	197	160	132
Max.injection hold pressure	kgf/cm2	2015	1632	1349
Clamp tonnage	kn	2300
Space between tie-bars	mm	630*580
Platen dimension	mm	880*860
Open stroke	mm	550
Min mould thickness	mm	250
Max mould thickness	mm	680
Ejector stroke	mm	150
Ejector force	mm	39.2
Ejector number		13
Motor power	kw	54
Total electric capacity	kva	69.5
Machine dimension	m	6.31.62
Mahcine weight	T	10

Model	SE-2800A
Injection model	1080
		A	B	C
Screw diameter	mm	50	55	60
Screw L/D ratio		22	20	18
Injection capacity	cm3	518.4	570.2	633.6
Injection weight (PS)	g	471.7	518.9	576.6
Injection stroke	mm	240
Plasticizing capacity(PS)	kg/h	150	175	200
Scerw speed	rpm	320
Heater band		4+1
Heater power	kw	19.2
Nozzle pressing force	Kn	40
STANDARD
Injection speed	mm/s	250
Injection rate(PS)	cm3/s	432	475.2	528
Injection pressure	mpa	196	162	136
Injection pressure	kgf/cm2	1920	1653	1334
Max.injection hold pressure	mpa	156	130	109
Max.injection hold pressure	kgf/cm2	1536	1322	1067
OPTION
Injection speed	mm/s	300
Injection rate(PS)	cm3/s	599	723	861
Injection pressure	mpa	196	162	136
Injection pressure	kgf/cm2	1920	1653	1334
Max.injection hold pressure	mpa	156	130	109
Max.injection hold pressure	kgf/cm2	1536	1332	1067
Clamp tonnage	kn	3000
Space between tie-bars	mm	730*680
Platen dimension	mm	1020*960
Open stroke	mm	600
Min mould thickness	mm	250
Max mould thickness	mm	750
Ejector stroke	mm	180
Ejector force	mm	49
Ejector number		13
Motor power	kw	54
Total electric capacity	kva	73.2
Machine dimension	m	6.51.72.2
Mahcine weight	T	15
